Brainchild vPLC20 (PLC-HMI)

Description :

vPLC series includes 3 models vPLC10, vPLC20 & vPLC30, all with wide screens in 4.3”, 7” & 10”, LINUX OS, and bundled with CODESYS V3 for Factory, Process, Embedded, Building & Mobile Automations. Presently they are good for simple logic control, multi-axis & fast motion control. For the future, vPLCs will be expanded into sophisticated 3D-CNC and Robot controls.





Specification :  Display　 Size 7" Resolution(W X H in pixels) 800 X480 Display Type TFT wide Screen Colors 65,536 Touch screen Type Resistive analog Backlight LED
Main Hardware Processor, CPU speed TI AM335x ARM Cortex-A8, 1 GHz Flash memory 4 GB eMMC RAM 256 MB Memory for code & data 4.6MB Operation System Linux Bit Operation 0.10 µs Maximum number of I/O up to 1,000 Real Time Clock Battery backup

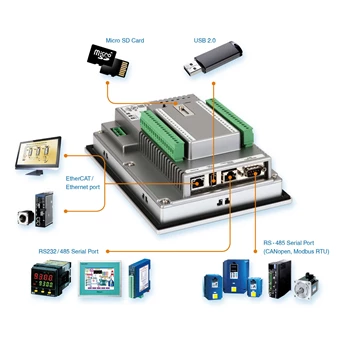

Interfaces RS232C/RS485, DB9 Male 1 RS485, RJ45 1 Ethernet 10/100 Mbps, RJ45 1 USB Host, Client 1, 1 Micro SD card slot 1 Protocols Modbus RTU, TCP, CANopen, EtherCAT
On-board I/O Digital inputs 8-16 DI with 3 HSC up to 1 MHz Digital outputs ( relays or TTL ) 8-14 DO with 6 PWM/HSO up to 5 MHz
Expandable I/O CANopen I/O 16DI, 16DO, 6 relays, 6DIO, 8AII, 8AIV, 4TC, 4RTD, 6AOI, 6AOV EtherCAT I/O 8DIO, 16DI, 16DO, 4AI, 4AO
SoftPLC CODESYS V3 IEC 61131-3 Programming Languages Ladder, Structured Text, Function Block Diagram, Sequential Function Charts, Instruction List, Continuous Function Charts Logic control CODESYS Control Runtime Motion control CODESYS SoftMotion HMI software CODESYS TargetVisu WebServer CODESYS WebVisu
General Specifications Power Supply 11 - 36VDC Outer dimensions (W x H x D mm) 212 x 156 x 57 Mounting depth (mm) 51 Panel cutout (W x H mm) 197⁺¹ x 141⁺¹ Protection IP65 front, IP20 rear Net Weight (Kgs) 1.2 Operating temperature 0 ˚C to 50 ˚ C Storage temperature -20 ˚C to 60 ˚ C Humidity 10 % to 90 % RH Safety standards CE, cULus, RoHS
